Project Description

Ball mill machine

WET MILLING MACHINE, GOLD MILL, BALL MILL

Ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.

  • High capacity & continuous grinding

  • Quick installation, easy operation, and maintenance

  • Quality design, long service life

  • 1 year quality warranty, 24 hours customer service

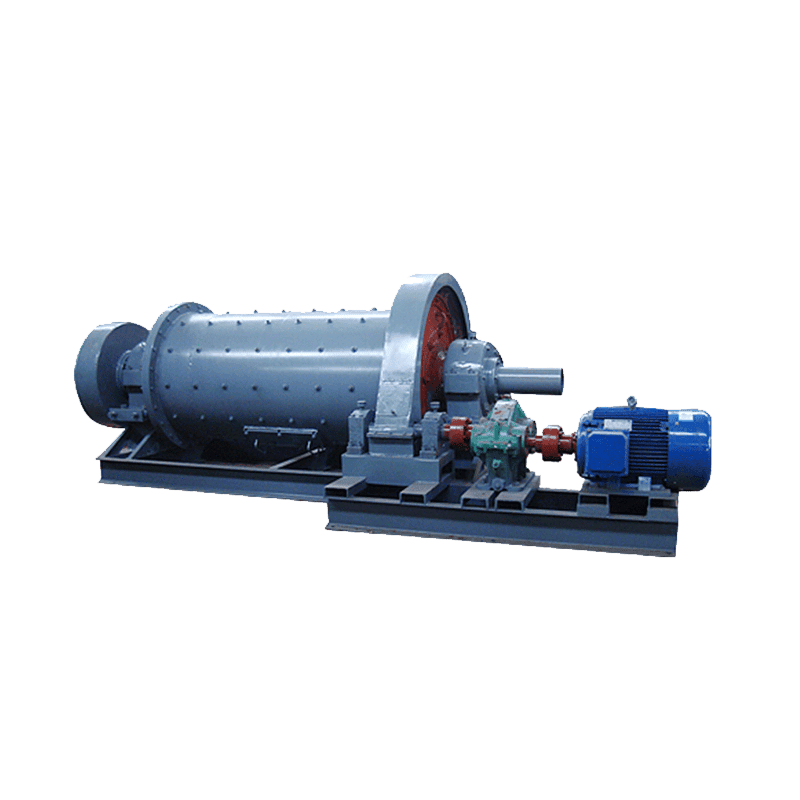

ball mill

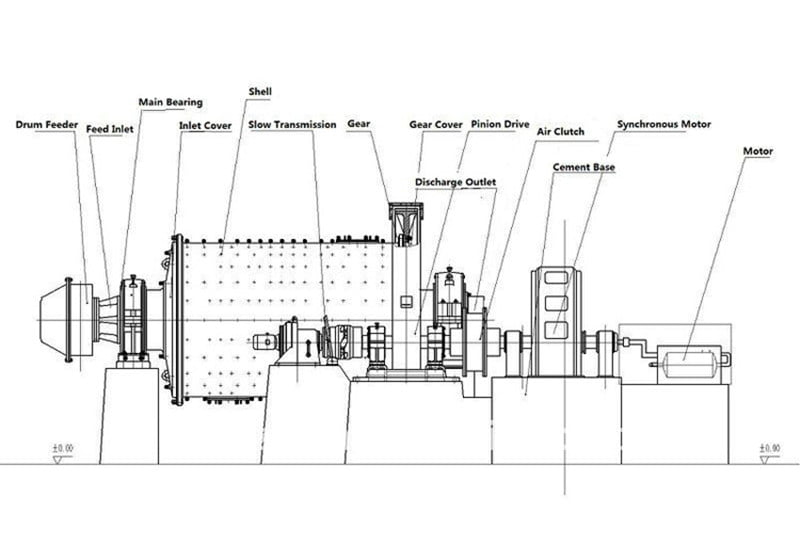

Product Structure

ball mill structure

Description

Ball Mill is a type of ore milling machine used to grind materials into an extremely fine powder, mainly used in the mineral ore processing industry. Ball Mill could grind various ores and other materials either wet or dry, depending on requirements. It consists of a large cylinder which slowly rotates around a horizontal axis. The cylinder is partially filled with the material to be grind, plus the grinding media (steel grinding balls). Inside the cylinder, the media will be lifted to a certain height under the action of centrifugal force and then drop or fall, grinding the ore in between the balls as they interact. Feed material to be ground enters the cylinder via a hopper on one end and after being crushed by the grinding medium is discharged at the other end.

Technical Parameters
