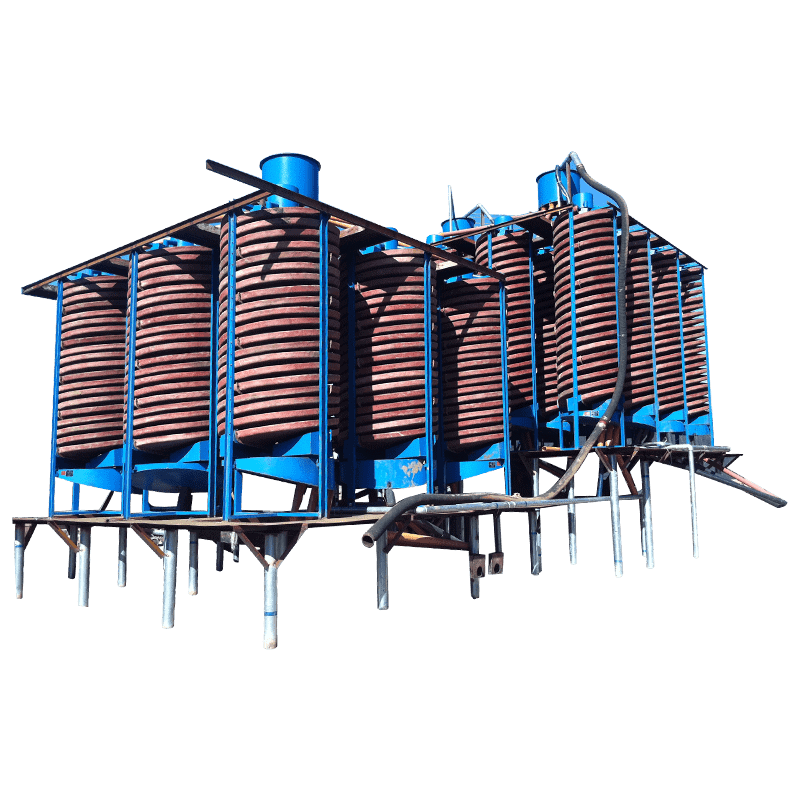

Spiral Chute

CHROME SPIRAL WASH PLANT, SPIRAL SEPARATOR, SPIRAL CONCENTRATOR.

Spiral Chute is the best equipment for mining and mineral processing, which combines the characteristics of the spiral concentrator, shaking table and Centrifugal concentrator. It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover, light moisture proof, anti-rust. It is mainly used for separation and recovery of a wide range of minerals: zircon, ilmenite, rutile, iron ore, chromite, manganese, tin, tantalum and tungsten ore, silica sands, gold, copper and base metals and etc., as well as other non-ferrous metals, rare metals and non-metallic minerals.

  • Excellent Metallurgical Performance

  • Compact, Modular Units, Save Space and Reduce Capital Costs

  • low investment, long service life

  • 1 year quality warranty, 24 hours customer service

spiral chute

Product working video

Description

The Spiral separator/ spiral chute is the earliest mining machine. It has been used in to classify the granularity 0.3-0.02 millimeters fine grain like iron, tin, tungsten, tantalum-niobium, gold ore, coal mine, monazite, rutile, zircon, and other metals. The non-metallic minerals which have a big enough specific gravity difference.

Raise the spiral chute and fix it in the proper position, sand pump transport the ore to the feed inlet, adding water to adjust the concentration of the slurry. The slurry naturally swirls from high to low, and generates an inertial centrifugal force in the rotating bevel flow rate. The mineral is separated from the sand by the gravity and centrifugal force of the swirl by the difference in specific gravity, grain size and shape of the ore. The concentrate flows into the concentrate bucket and is connected by the pipeline. The tail sand flows into the tailing sand bucket and is connected to the sand pool by the pipeline, and then drained by the sand pump to complete the whole process of the beneficiation.

Machine Details

Technical Parameters
